Technical Specifications
See the product's technical specifications below.
Gas Type:Compressed Air
Inlet Thread (Cylinder):M18 x 1,5
Outlet Connection (Coupling Thread):G 5/8" x 14
Output Connection Standard:EN 144-2
Passage Diameter:4,5 mm
Siphon Tube Thread (Fishing):M8 x 0,75
Maximum Working Pressure:300 BAR
Working Temperature:-20°C to +65°C
Body Material:Forged Brass Chrome Plated
Handle Material:TPU + Polyamide
Manuals and Catalogs

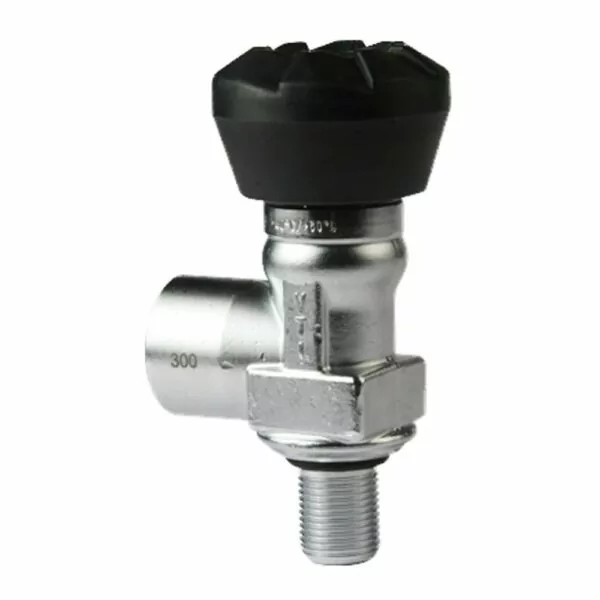

Available resourses for Breathable Air Valve – Model VTI K44 M18x1.5 – 300BAR
