Description

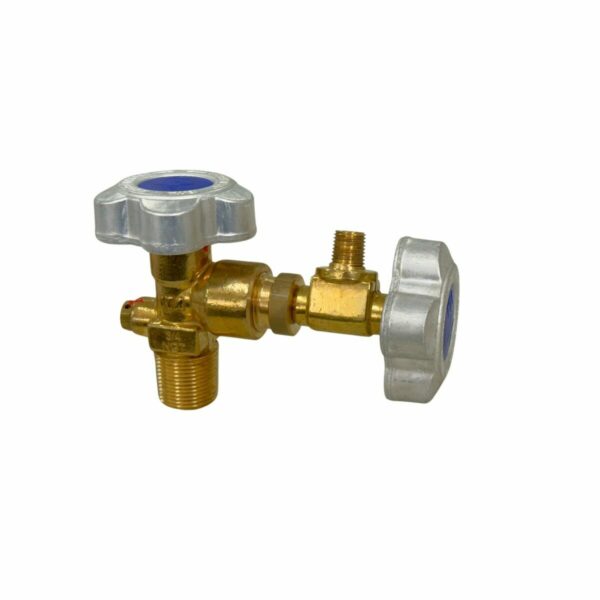

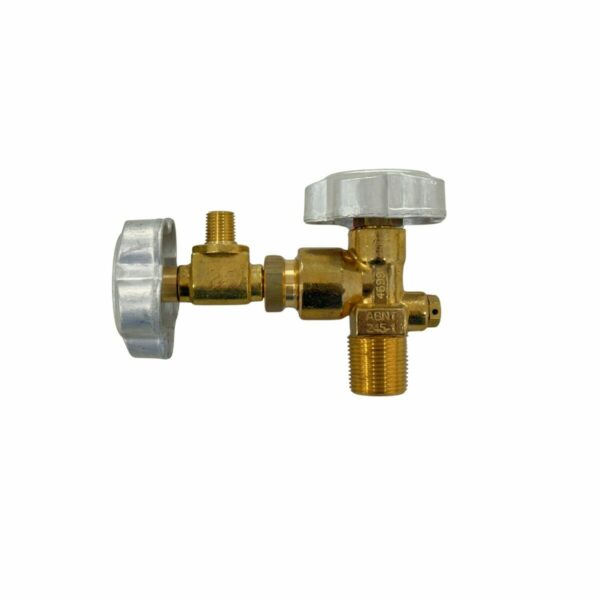

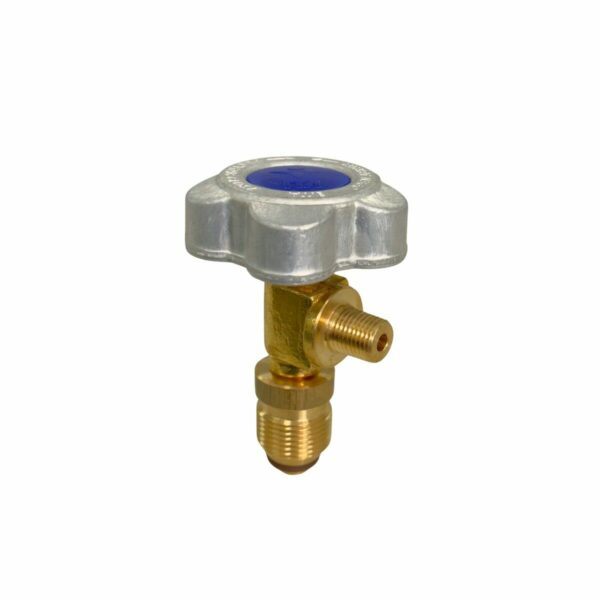

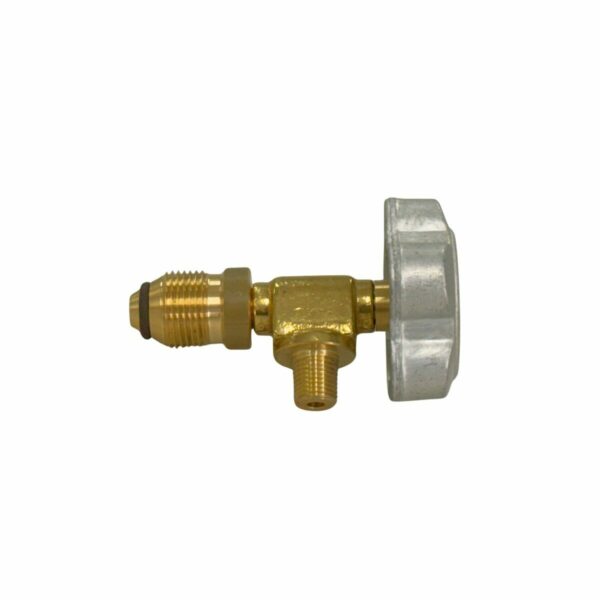

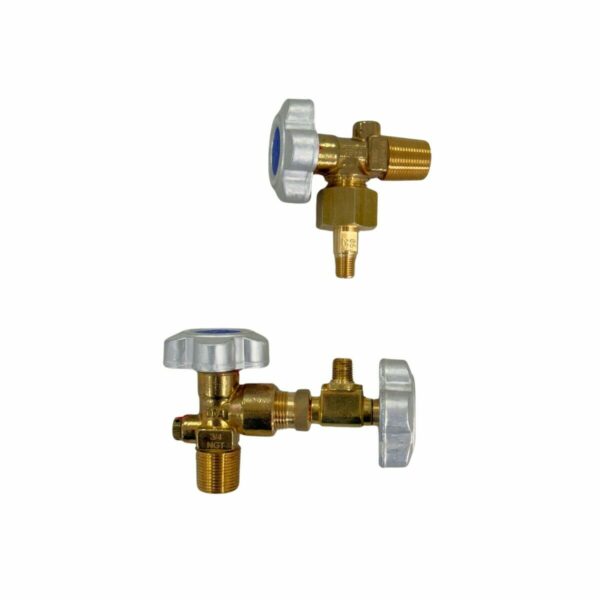

Swivel connector designed for filling cylinders with gas mixtures (such as synthetic air, nitrox, or custom gas blends), with an outlet compliant with ABNT NBR 245-1. Suitable for use in industrial or medical gas filling systems, it provides installation flexibility and long-lasting performance under continuous use.
With a 1/4″ NPT inlet thread and a robust NBR O-ring sealing system (SHORE A 70 and 90), the connector ensures excellent sealing and wear resistance. Its swivel articulation enables tool-free operation, preventing hose twisting and reducing wear during repeated use.
Technical Specifications:
-
Inlet thread: 1/4″ – 18 NPT
-
Outlet connection: ABNT 245-1 standard (Gas Mixture)
-
Maximum working pressure: 250 bar
-
Sealing system: NBR O-rings (SHORE A 70 and 90)
-
Body material: Forged brass CA360 and CA377
-
Theoretical weight: 314.1 g
-
Additional materials: steel, nylon 6.6, LDPE
-
Application: Industrial and medical gas mixtures
-
Operation: Manual, with ergonomic aluminum handwheel
