Description

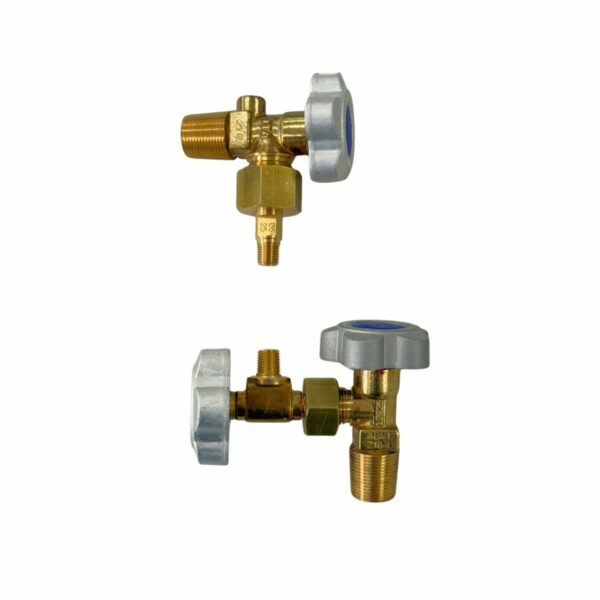

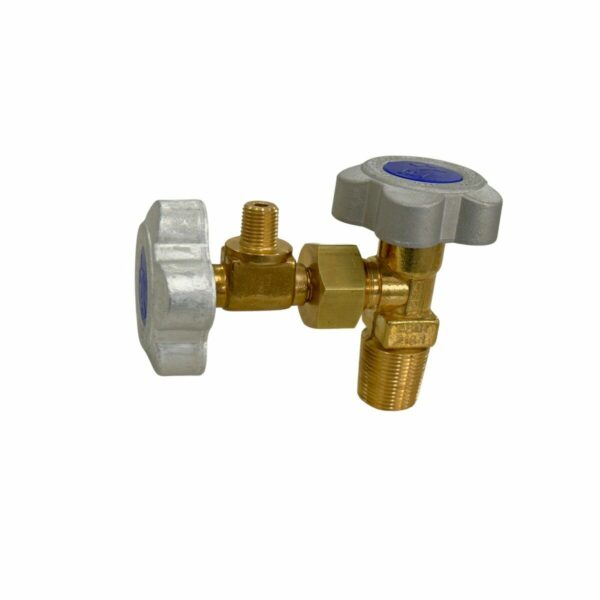

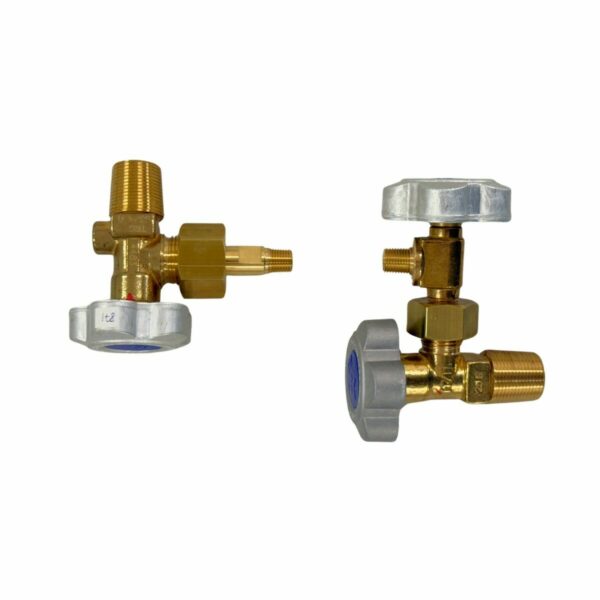

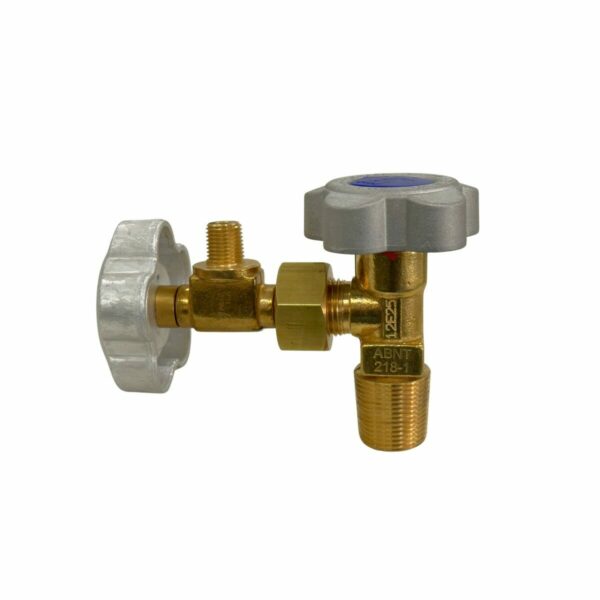

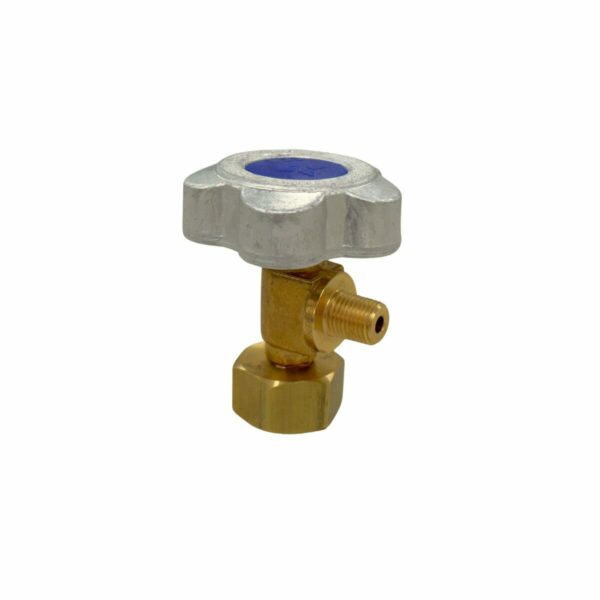

Swivel connector designed for oxygen cylinder filling systems, featuring an outlet compliant with ABNT NBR 218-1. Used in cylinder filling ramps and cascade systems, it connects directly to high-pressure hoses with manual coupling, eliminating the need for tools.
Its rotating geometry allows for smooth and secure positioning, reducing hose strain and operator effort. The Viton O-ring sealing system ensures excellent chemical and thermal resistance, maintaining leak-tight performance up to 250 bar of working pressure.
Technical Specifications:
-
Inlet thread: 1/4″ – 18 NPT
-
Outlet connection: ABNT 218-1 standard (Oxygen)
-
Maximum working pressure: 250 bar
-
Sealing system: Viton O-rings (SHORE A 70)
-
Body material: Forged brass CA360 and CA377
-
Internal components: steel, nylon 6.6, LDPE
-
Application: Industrial and medical oxygen filling systems
-
Operation: Manual, with aluminum handwheel
