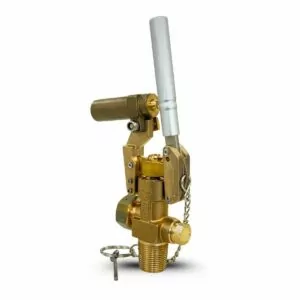

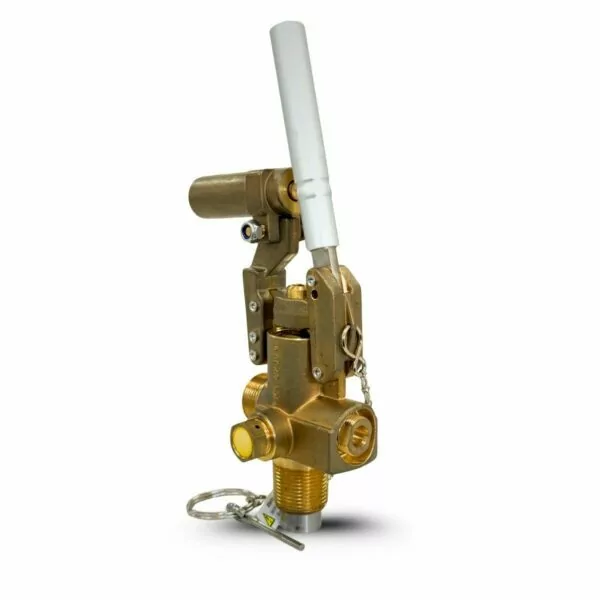

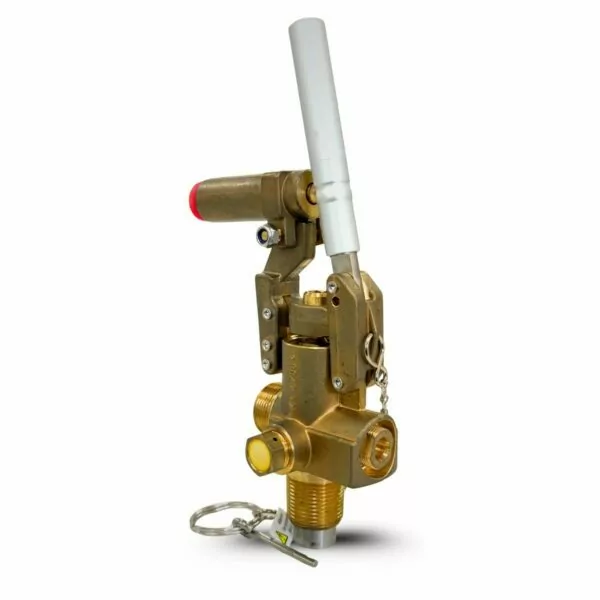

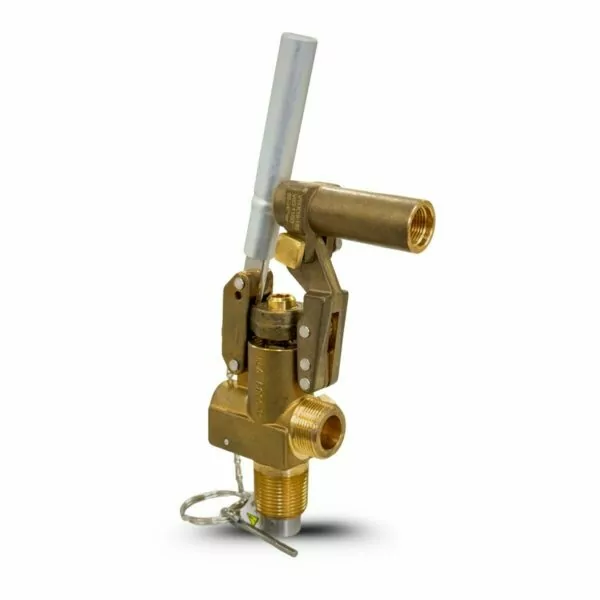

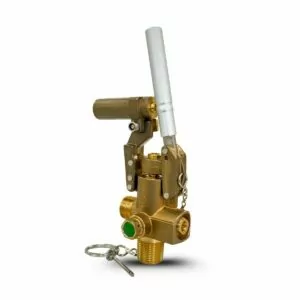

See the product's technical specifications below.
Gas Type: Argônio, Argonite, FM 200, Inergen, Nitrogênio, Novec 1230, Deugen N
Inlet Thread (Cylinder): 3/4" x 14 NGT
Outlet Connection (Coupling Thread): M26 x 1,5
Pneumatic Drive Connections: 1 Saída
Passage Diameter: 16 mm
Siphon Tube Thread (Fishing): M20 x 1,25
Maximum Working Pressure: 126 BAR
Type of Safety Device: Ruptura
Burst Pressure: 200 BAR
Working Temperature: -30°C a +80°C
Body Material: Latão Forjado
Connection for Electric Drive (K85-45): SIM
