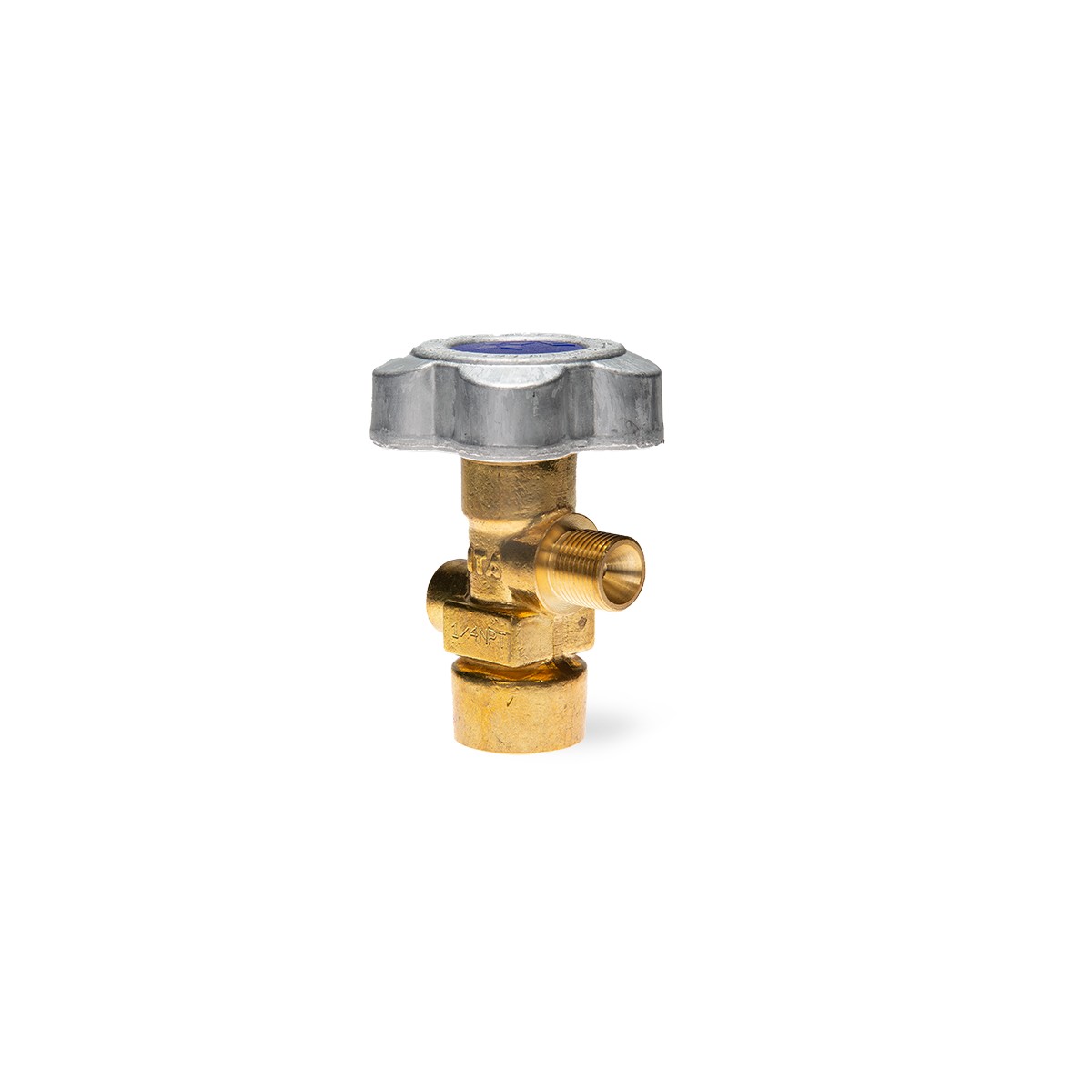

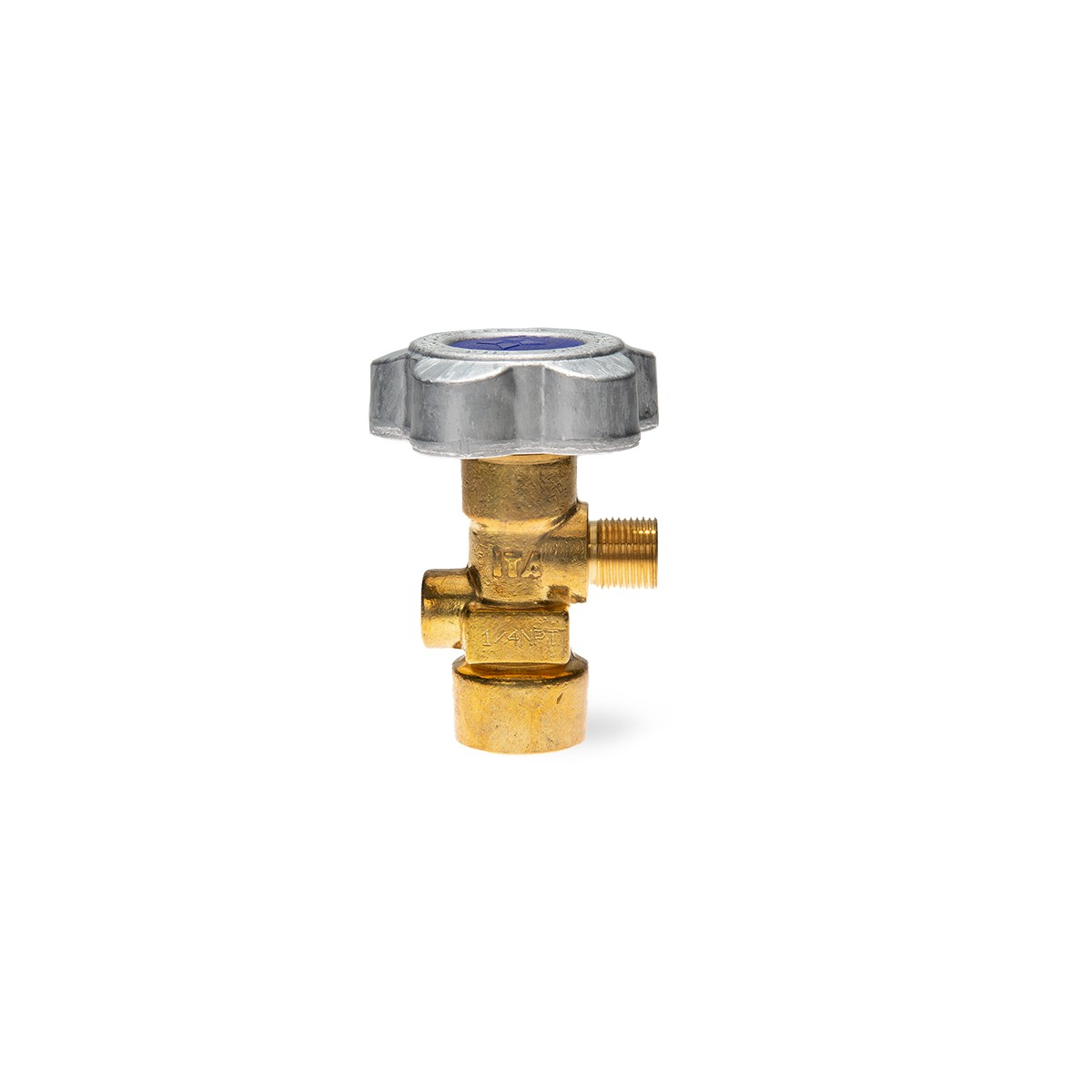

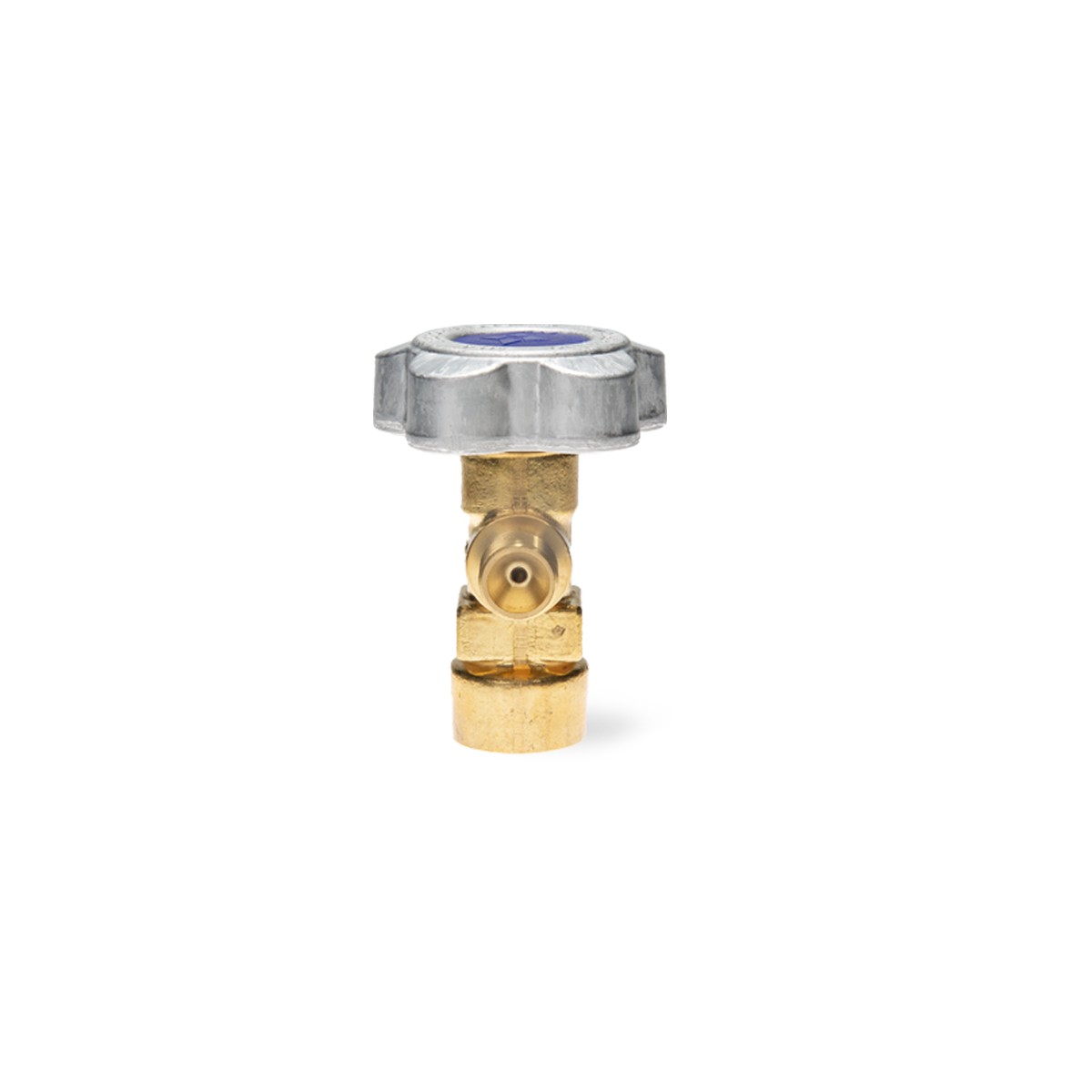

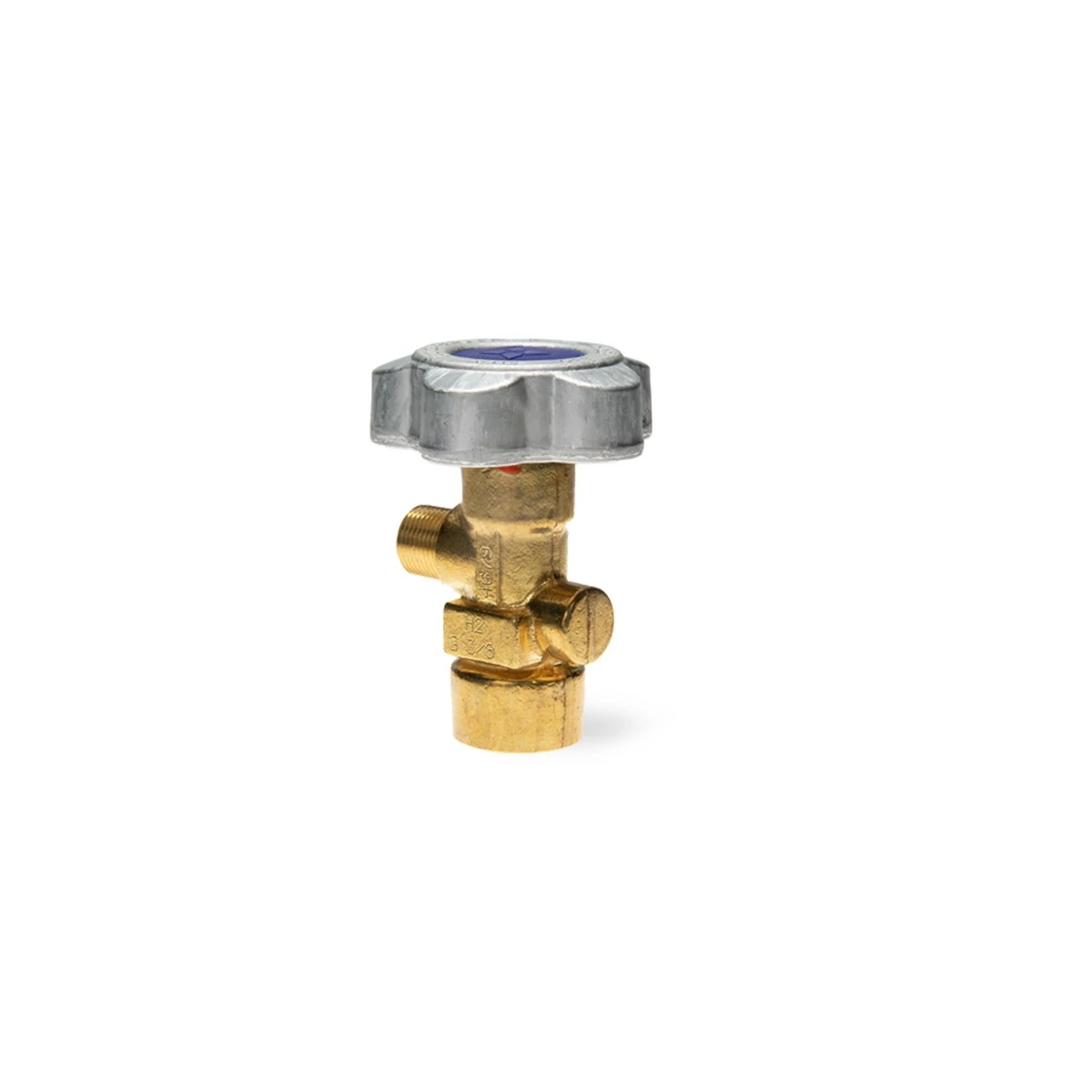

Valve for Hydrogen (H2) – ON-OFF Terminal – 3/8″ BSP

4.4.51.00894 - Válvula Terminal On Off H2 1_4 NPT G 3_8 3
Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
  1. 4.4.51.00894 - Válvula Terminal On Off H2 1_4 NPT G 3_8 3
  2. Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
  3. Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
  4. Valve for Hydrogen (H2) - ON-OFF Terminal - 3/8" BSP
SKU: 4.4.51.00894 Categories: ,

Technical Specifications

See the product's technical specifications below.

Gas Type:Hydrogen
Inlet Thread (Cylinder):1/4" x 18 NPT
Outlet Connection (Coupling Thread):3/8" - 19 BSP DIR EXT
Passage Diameter:3 mm
Maximum Working Pressure:250 BAR
Working Temperature:-20°C to +65°C
Body Material:Forged Brass
Handwheel, Stem or Cable and Trigger Material:Forged Aluminum
Seal Material:Polyamide
